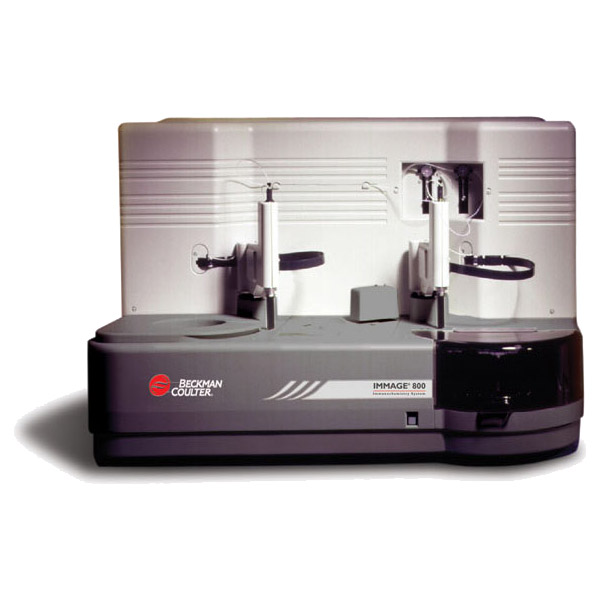

Immage 800 Nephelometry System

Salient Product Features:

• Fully automated random access special chemistry bench top analyser
• High performance dual detection technologies in Rate Nephelometry and Rate NIPIA (Near Infrared Particle Immunoassay)
• High analysis throughput of 180 tests per hour
• Test menu of over 30 assays and extensive list of disease state panels such as Renal, Cardiac and Autoimmune
• Cooled reagent compartment has on-board capacity of 24 barcoded, liquid ready to use assay cartridges
• Total of 39 semi-permanent cuvettes process controls, calibrators and patient samples simultaneously and are cleaned by environmentally friendly wash station offering automatic variable cuvette wash
• Productivity enhanced by dynamic blanking methodology, single point calibration verification and integrated antigen excess solution
• Simplified UDR (User Defined Reagent) capability with provision to store protocols for up to 50 new additional chemistries and facility to perform 12 chemistries in a single test run
• Analyser stores up to 10000 patient samples and accommodates multiple sized tubes at once including those for pediatric samples
• Sample loading capacity of 72 samples at one time in 8 sample racks having 9 tube holders places
• Automatic reagent tracking and inventory function tracks chemistry name, individual serial number, lot number, calibration status, expiration date and remaining buffer and diluent solution
